ILMT construction

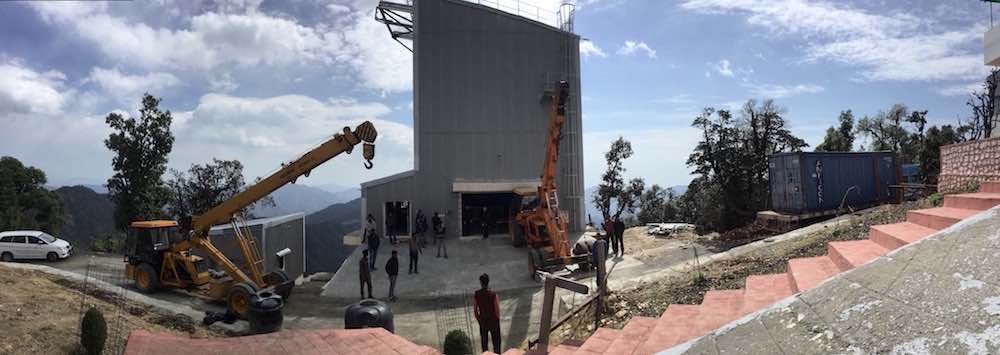

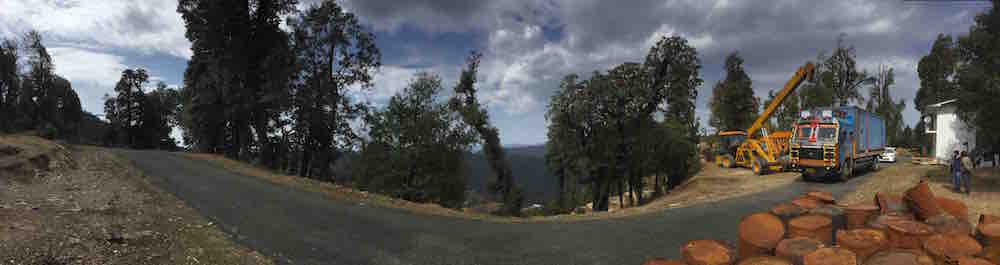

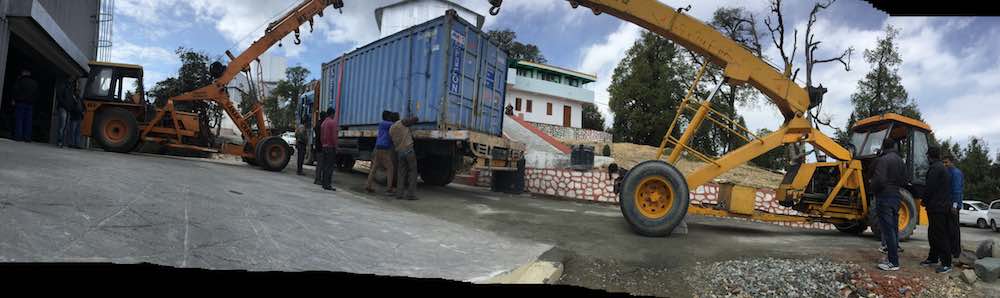

Transportation of the ILMT container (with telescope structure, air bearing and optical corrector) on 2nd of March 2017. With the help of two hydras and one truck, the container has been transported up to the ILMT building from the entrance of the Devasthal site which is about 2 km apart.

The pictures below illustrate different phases during the construction of the ILMT,
the mechanical system, corrector, air bearing and pneumatics system (March-June, 2017)

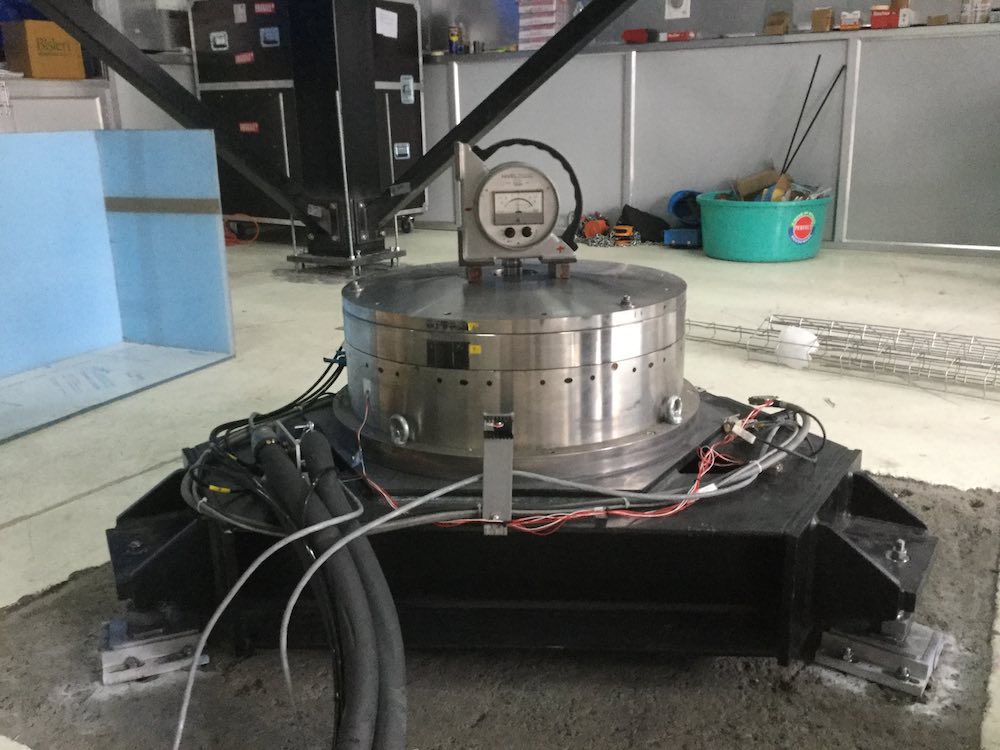

The air bearing

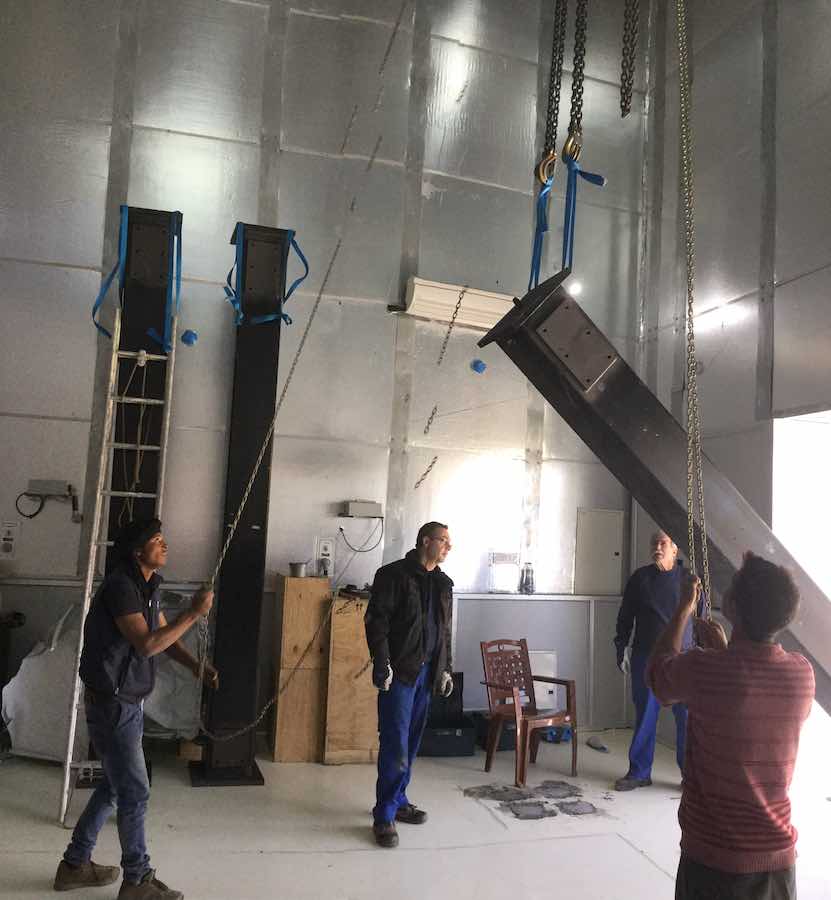

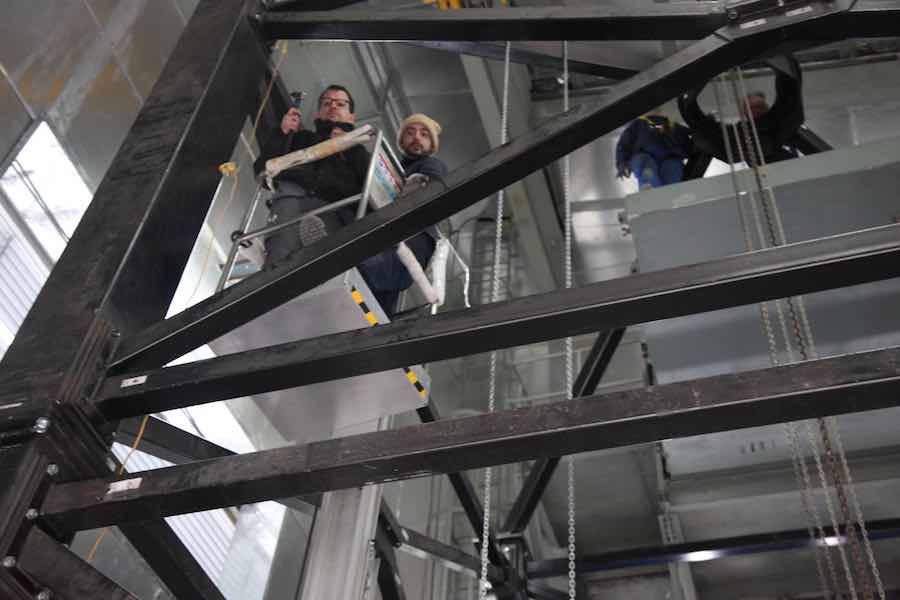

Structure elements of the ILMT

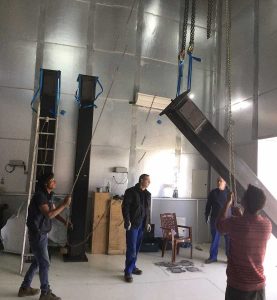

ILMT main structure and bowl

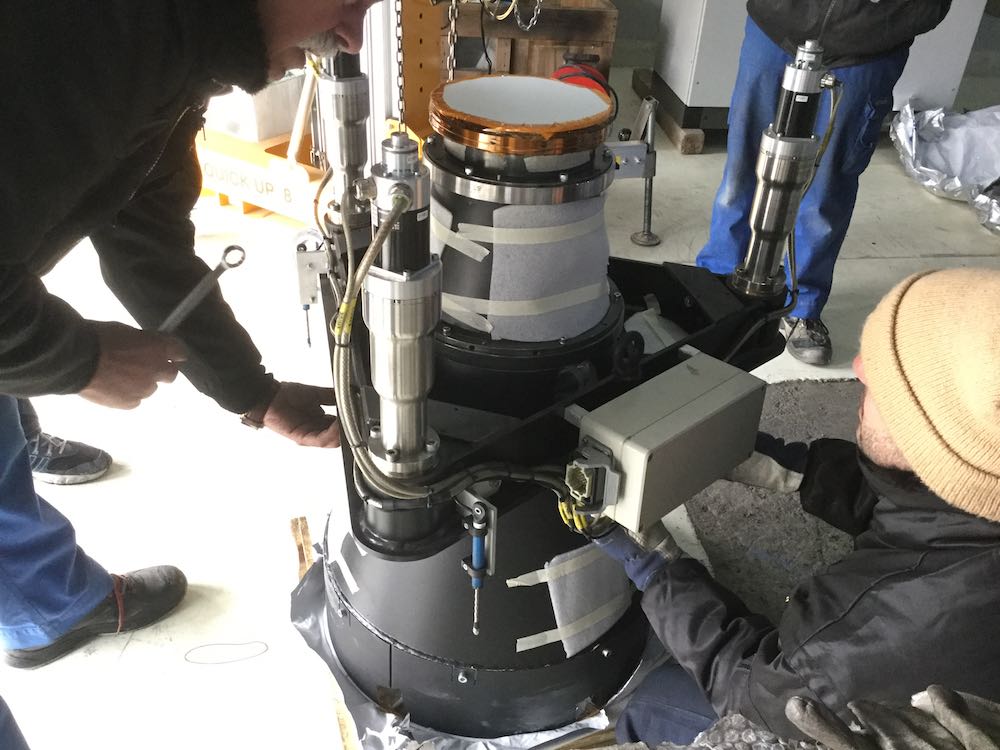

Last checks on the optical corrector

Lifting up the optical corrector

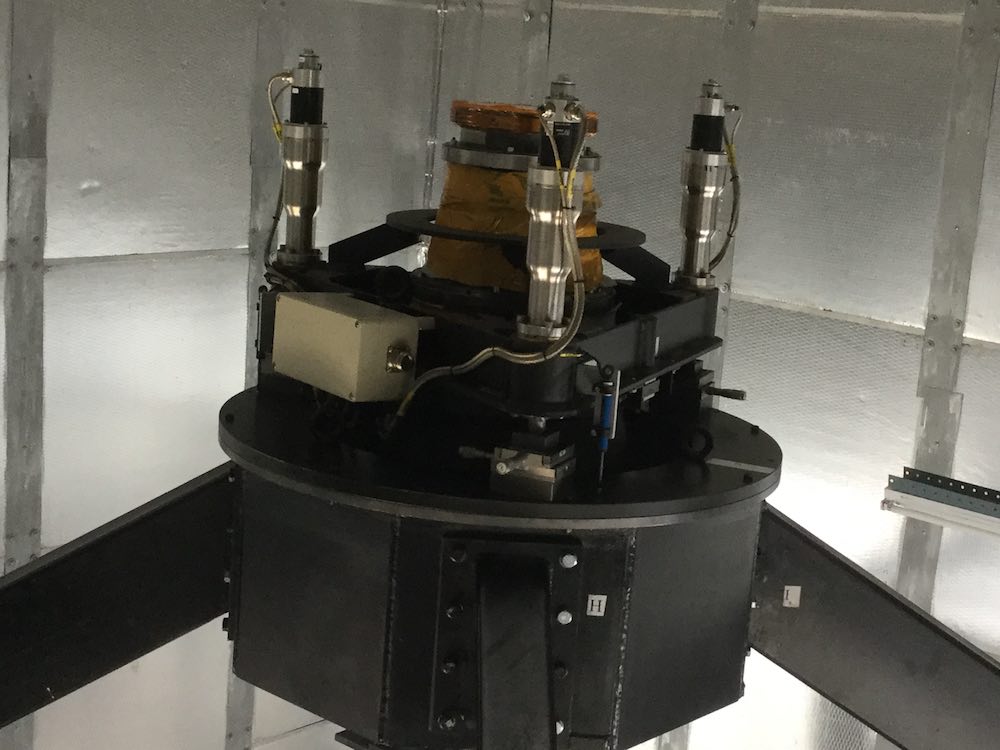

Optical corrector installed at the prime focus

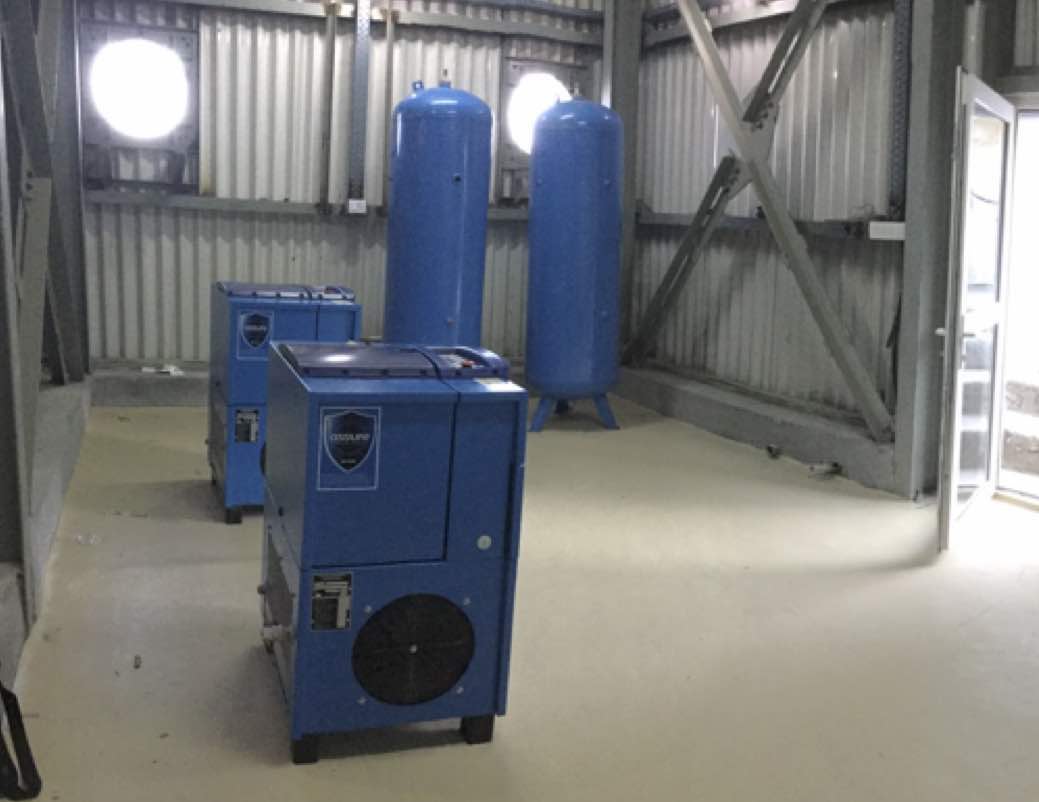

The two ILMT compressors and tanks

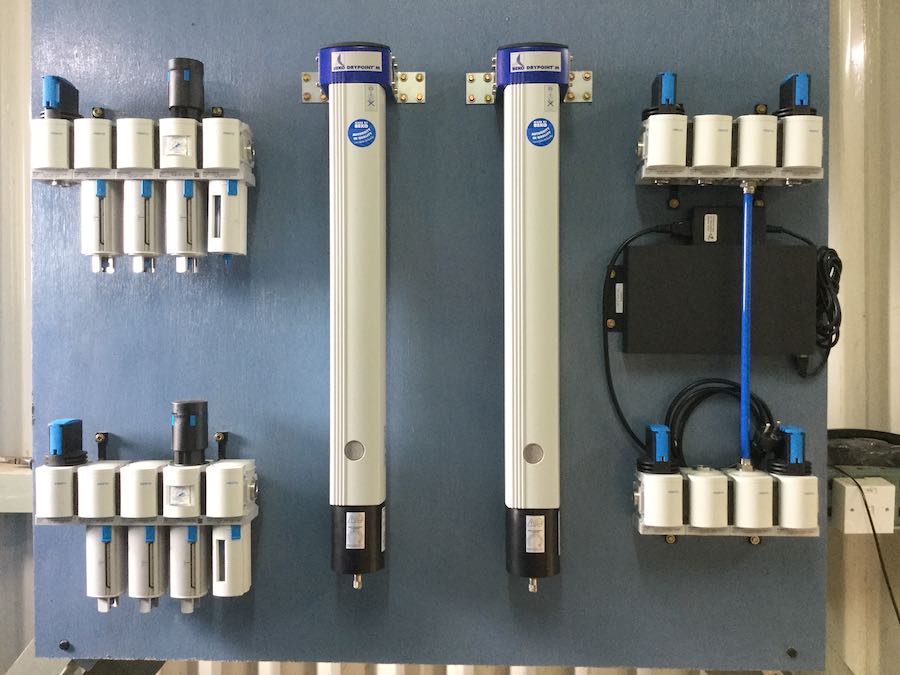

The air pneumatic system
